4-1/2" Speed-Feed Trimmer Head, LH Spool / 55-265

Oregon 2 Line 4-1/2" Speed-Feed Trimmer Head, LH Spool / 55-265

Replaces the following OEM Part Numbers:
Rotary 13377
Shindaiwa 78890-21001
Stens 385-288

Replacement Parts:
Arbor Stud (M7 x 1 LH) 55-337 - Diagram #1
Arbor Stud (M8 x 1.25RH) 55-338 - Diagram #2
Spacer 55-345 - Diagram #3
Eyelet Carrier 55-347 - Diagram #5
Eyelet 55-336 - Diagram #6
Core 55-295 - Diagram #7
Arbor Bushing (M10 x 1 LH) 55-288 - Diagram #8
Arbor Bushing (M10 x 1.25 LH) 55-287 - Diagram #9
Arbor Bushing 3/8" - 24 (RH) 55-289 - Diagram #10
Spool ( LH) 55-348 - Diagram #11
Spring Cap 55-339 - Diagram #12
Spring 55-344 - Diagram #13
Cover 55-349 - Diagram #14

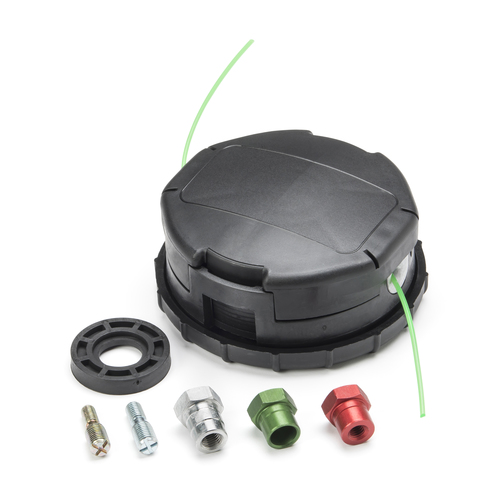

Adapters Included:
7 mm x 1.0 LH
8 mm x 1.25 LH
10 mm x 125 LH

Description:
Easy line loading takes 30 seconds or less. No disassembly
required. Simply slide line through head until half of amount
to be added is on each side of the head, grasp the easy grip
collar and wind line in. Rugged semi-matic head is designed
for medium to heavy-duty applications. Inner wall reduces
debris inside the head and large durable eyelets increase line
life. Line tensioning system with split spool reduces vibration.
Part numbers 55-294 and 55-265 mount on most straight
shaft Trimmers using 7 mm x 1.0 LH, 8 mm x 1.25 LH and 10 mm
x 1.25 LH adapters included.

Oregon Part Number: 55-265
